TECHNICAL SPECIFICATIONS
 Video format
H.264 1280x720 pixel @ 30 fps
 Field of view
67° or 84°
 Lens
Telecentric with 6 elements
 Supported SD card
Up to 128 GB
 Display
2.4" 240x320 pixel
 Accelerometer
Three-axial ± 5G
 Internal battery
Rechargeable lithium battery - 1.040 mAh
 Battery charge
700 mAh 12V
 Internal battery duration
60 - 70 min of recording
 External power
9-15 Volt
 Auto Power ON/OFF
Yes, if connected to an AiM logger
 Auto Power OFF
Yes
 Auto Start/Stop Recording
Yes
 Usage temperatures
-10°C/+60°C
 Body
Anodized Aluminum
 Bullet cable length
0.5 - 1.0 - 1.5 - 2.0 m

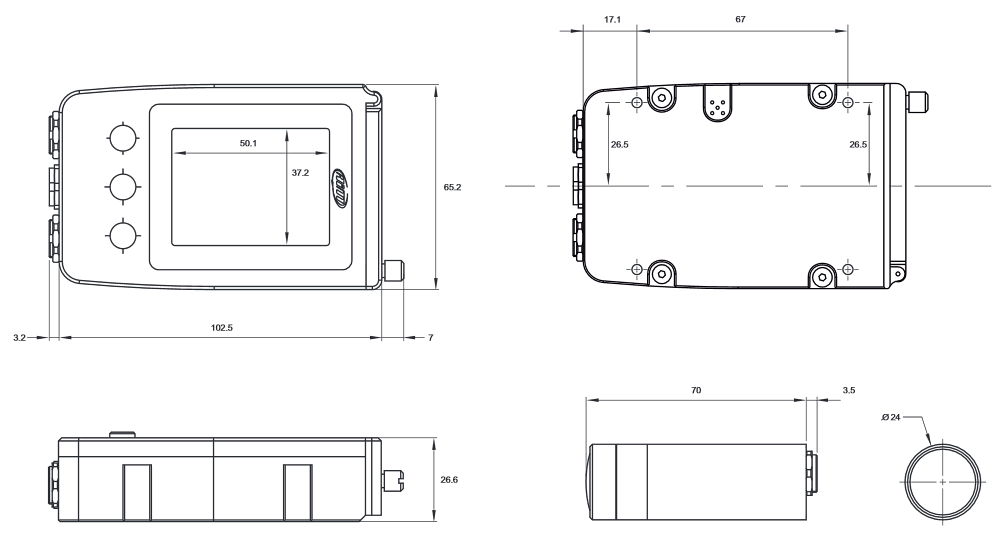

 Dimensions
Main box 102.5x65.2x26.5 mm
Bullet camera 24 diam x 73.5 mm
 Weight
Main box 260 g, Bullet camera 55 g
 Waterproof
IP67

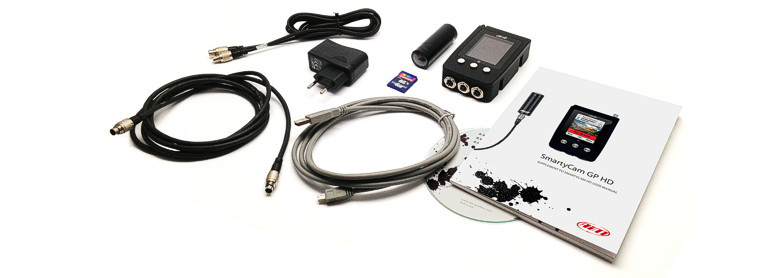

IN THE BOX
Six kits are available, depending on the HFOV lens and the harness:
Bullet cam HFOV 67° lens
SmartyCam GP HD Rev. 2.1 recording module, bullet cam connection harness - L=2mt, Mini B - USB adapter cable, battery charger, 4GB HC10 SD card, CD with software, user manual.
With CAN harness – L = 2 m X96SHG0267R21
With CAN harness – L = 4 m X96SHG0467R21
With External power harness - L = 2 m X96SHG0167R21
Bullet cam HFOV 84° lens
SmartyCam GP HD Rev. 2.1 recording module, bullet cam connection harness - L=2mt, Mini B - USB adapter cable, battery charger, 4GB HC10 SD card, CD with software, user manual.
With CAN harness – L = 2 m X96SHG0284R21
With CAN harness – L = 4 m X96SHG0484R21
With External power harness - L = 2 m X96SHG0184R21
