| TECHNICAL SPECIFICATIONS |
|
|
|
| Display |
7” TFT |
| Resolution |
800x480 pixels |
| Contrast |
1000:1 |
| Brightness |
700cd/m2 - 1,100 Lumen |
| Ambient light sensor |
Yes |
| Alarm LEDs |
8 configurable RGB LEDs |
| Shift lights |
10 configurable RGB LEDs |
| CAN connections |
2 |
| ECU connections |
CAN, RS232 or K-Line |
| ECU compatibility |
+ 1,000 industry leading ECUs |
| Expansion CAN connection |
GPS, Channel Expansion, TC Hub, Lambda Controller,
SmartyCam HD |
| Analog inputs |
8 fully configurable, max 1,000 Hz each |
| Digital inputs |
1 speed input, coil RPM input |
| Digital outputs |
1 (1 A max) |
| Second CAN |
Yes |
| Body |
Anodized Aluminum |
| Pushbuttons |
Metallic |

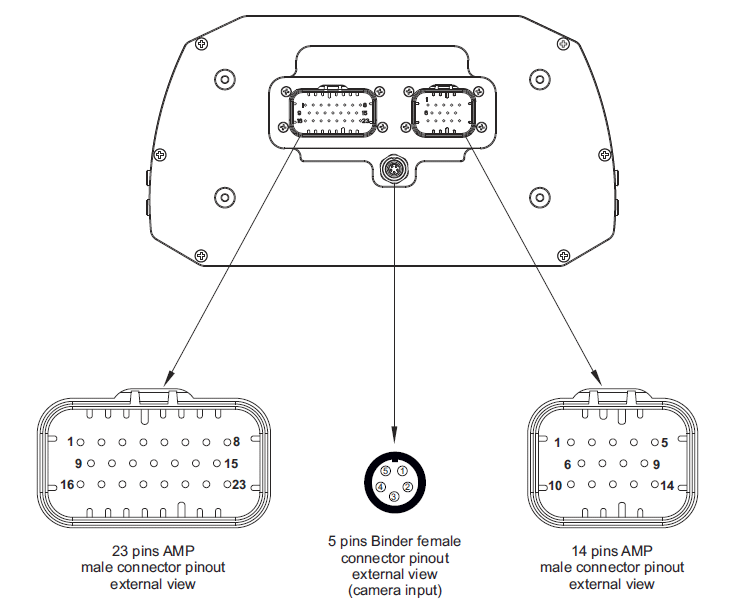

| Connectors |
2 AMP connectors + 1 Binder connector |
| Power consumption |
400 mA |

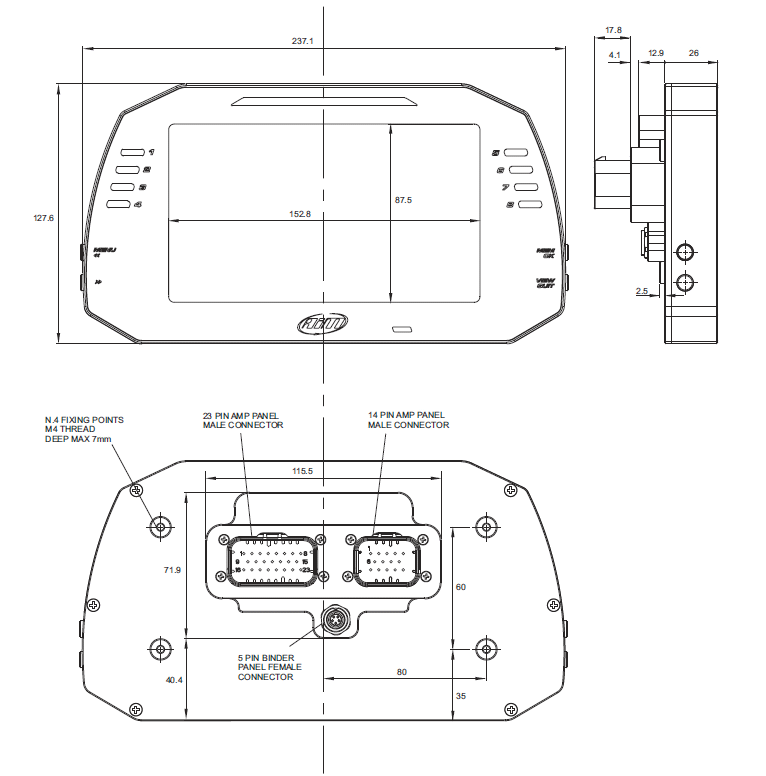

| Dimensions |
237x127.6x26 mm |
| Weight |
950 g |
| Waterproof |
IP65 |
|
|
|
|
|
|
| IN THE BOX |
|
| MXG 1.2 Strada, USB cable, 14 pins standard wiring, 23 pins connector + contacts, software installation CD. |
|
|
|
|
